Description

Description

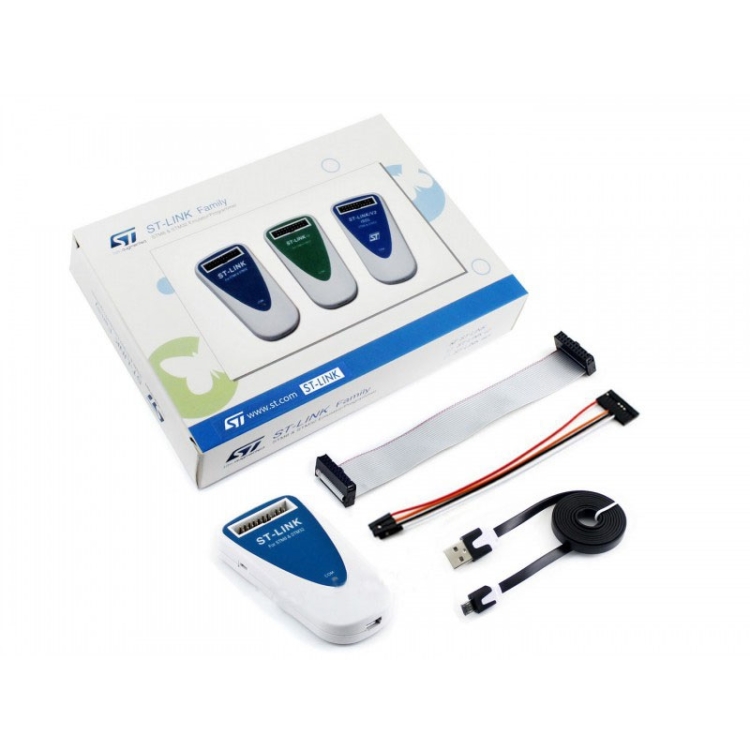

1. The ST-LINK is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The SWIM and JTAG/SWD interface is used to communicate with the STM8 or STM32 microcontroller located on your own application board.
2. On the PC side, the USB full speed interface is used to communicate with:
– ST Visual Develop (STVD) or ST Visual Program (STVP) software from
– STMicroelectronic's for the STM8, ATOLLIC, IAR and KEIL Integrated Development Environments for the STM32.

Key Features
1. 5V power supplied by USB connector
2. USB 2.0 full speed interface compatible
3. USB standard A to micro cable provided
4. SWIM specific features:
– 1.65 V to 5.5 V application voltage supported on SWIM interface
– SWIM low speed and high speed modes supported
– SWIM programming speed rate:
— 9.7 Kbytes/s in low speed
— 12.8 Kbytes/s in high speed
– SWIM cable for connection to an application with pin headers or 2.54 mm pitch connector
5. JTAG/SWD specific features:
– 3 V to 3.6 V application voltage supported on JTAG/SWD interface and 5 V tolerant inputs
– JTAG/SWD cable provided for connection to a standard JTAG 20-pin pitch 2.54 mm connector
6. Direct firmware update feature supported
7. Status LED which blinks during communication with PC
8. Operating temperature 0 to 50 degree C

Application Example
Connecting the PC and STM8/STM32 application board through a ST-LINK to establish hardware connection

Specification:
Package Weight
One Package Weight 0.10kgs / 0.22lb
Qty per Carton 96
Carton Weight 9.60kgs / 21.16lb
Carton Size 48cm * 36cm * 40cm / 18.9inch * 14.17inch * 15.75inch

OEM are Welcome! we can print customer''s artwork and logo
